Addendum:
|
CID095: TS1624FUXT3c [TS1624FUXT3cT240] CID103: TS1624FUXT1c [TS1624FUXT1cT240] |
updated: 2024-11-05 |
(obsolete configuration)
all measures in mm, EAF Focus Point: calculated optimal EAF focus position
Main Features:
- TSO 203/1624 RC Pro
- T2 FIlter changer for 2" and 1.25" filters
- Fujifilm XT Cameras
Configuration Schematic

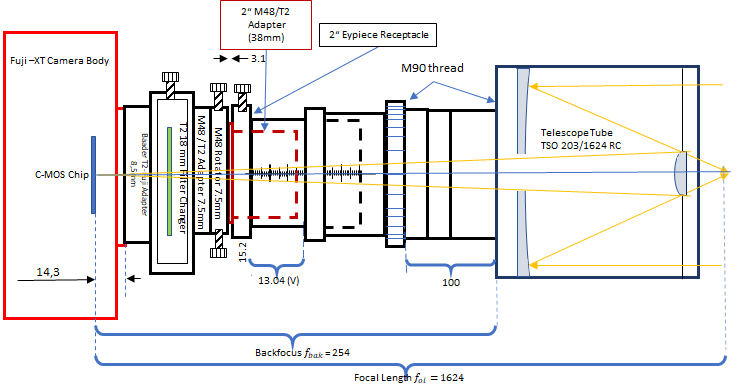

Picture: TS1624FUXT3-Drawing - click to enlarge
Camera Tail Calculation
|
Pos |
Equipment |
Manufacturer |
Length |
Total Length |
|
0 |
M90 50mm Extension |
TS-Optics |
50 |
240,96 |
|
1 |
M90 25mm Extension |
TS-Optics |
25 |
240,96 |
|
2 |
M90 25mm Extension |
TS-Optics |
25 |
240,96 |
|
3 |
M90 Crayford Focuser |
TS-Optics |
82 |
240,96 |
|
4 |
2"/M48 Adapter |
Omegon |
2,06 |
240,96 |
|
5 |
M48 Rotator |
TS-Optics |
8,5 |
240,96 |
|
6 |
M48/T2 Adapter 7.5 |
TS-Optics |
7,6 |
240,96 |
|
7 |
T2 Filter Changer |
TS-Optics |
18 |
240,96 |
|
8 |
T2 Baader Fuji Adapter 8.5 |
Baader |
8,5 |
240,96 |
|
9 |
Fuji XT Camera |
Fujifilm |
14,3 |
240,96 |
Table: copy from StarlustDB::qryCamTailExport
Optimal Focuser Position
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 203 EAF steps to the backfocus.
