Addendum:
|
CID133: TS1624cASI2600CAAx067 [TS1624cASI2600cT167R67] |
updated: 2025-09-11 |
all measures in mm
Main Features:
- Interim configuration for TSO 203/1624 RC Pro Carbon with ZWO ASI2600 MC AIR camera
- Telescope: TSO 203/1624c RC Pro Carbon
- Camera: ZWO ASI2600 MC AIR
- Others components:
- TSO 0.67x Reducer,
- ZWO CAA Rotator
- M54 TS-Optics Filter Changer for 2" or 1.25" filters

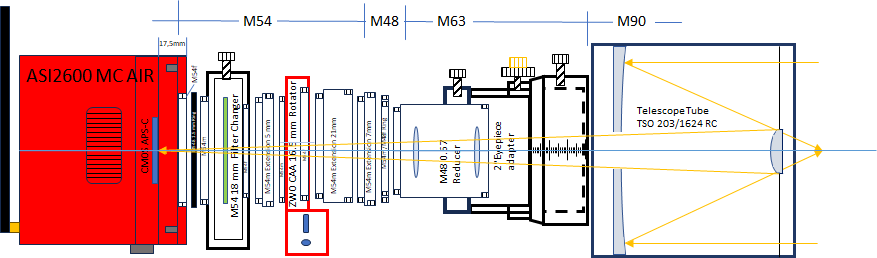

Configuration Schematic
Picture: TS1624cASI2600CAAx067-drawing - click to enlarge
Camera Tail Calculation
Table: TS1624cASI2600CAAx067-CamTail
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 190 EAF steps to the backfocus.

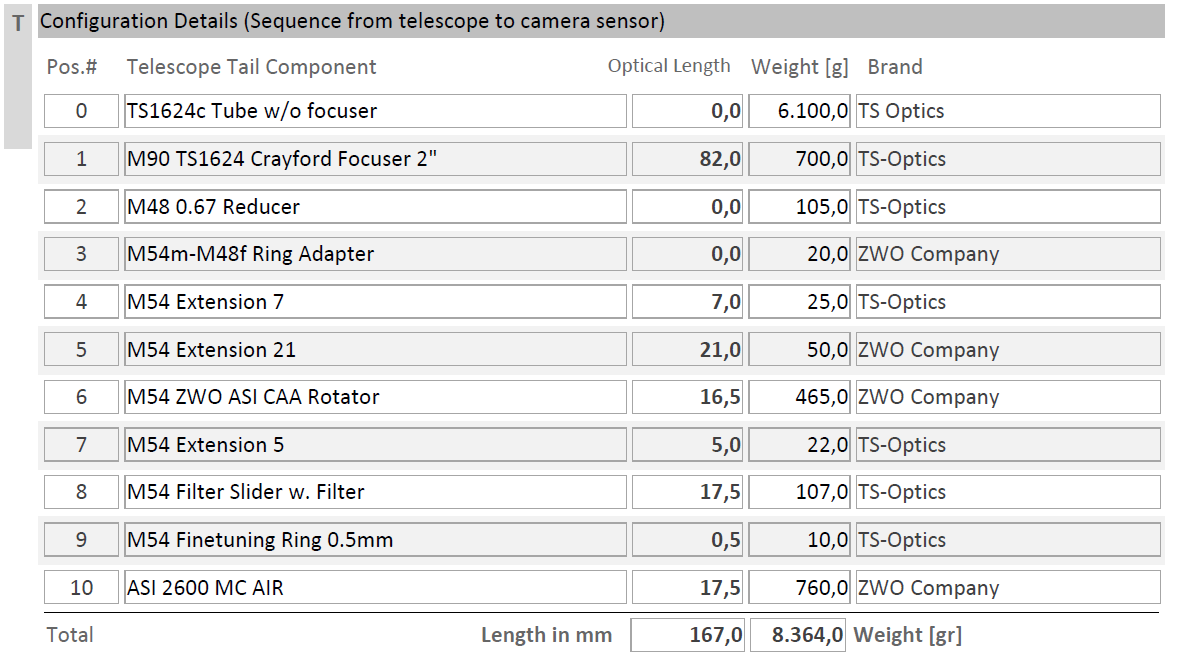

Configuration Details
