Addendum:
|
CID132: TS1624cASI2600CAA [TS1624cASI2600rtT239ZWOCAA] |
updated: 2025-09-11 |
all measures in mm
Main Features:
- Interim configuration for TSO 203/1624 RC Pro Carbon with ZWO ASI2600 MC AIR camera
- Telescope: TSO 203/1624c RC Pro Carbon
- Camera: ZWO ASI2600 MC AIR
- Others components:
- ZWO CAA Rotator,
- M48 rotation adapter (for a easy camera detachment),
- M54 TS-Optics Filter Changer for 2" or 1.25" filters

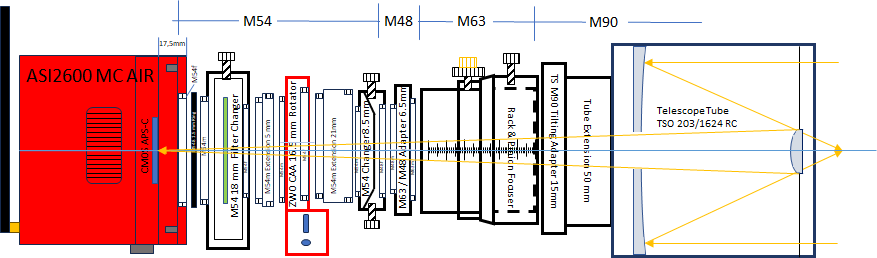

Configuration Schematic
Picture: TS1624cASI2600CAA-drawing - click to enlarge
Camera Tail Calculation

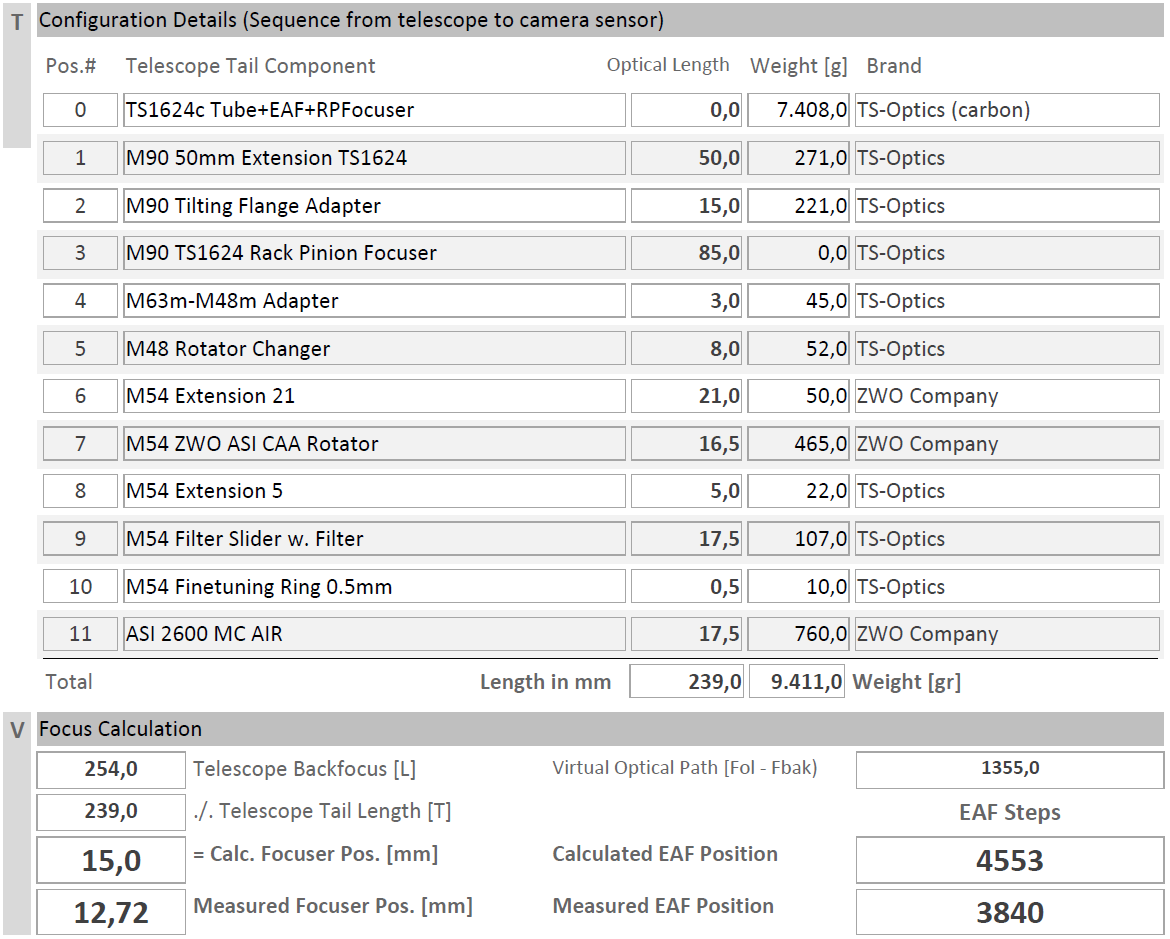

Table: TS1624cASI2600CAA-CamTail
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 190 EAF steps to the backfocus.
Configuration Details
