CID0130: TS600ASI2600x075 [TS600ASI2600GR75T153] |
updated: 2025-10-27 |
all measures in mm
Main Features:
- BASIC configuration for TSO90/600 telescope with ZWO ASI2600 MC AIR camera
- Telescope: TSO 90/600 APO
- Camera: ZWO ASI2600 MC AIR
- Others:
- ZWO CAA Rotator,
- a TS-Optics M63 0.75 Riccardi Reducer / Flattner with 76,2 mm backfocus,
- a M45 TS-Optics Filter Changer for 2" or 1.25" filters

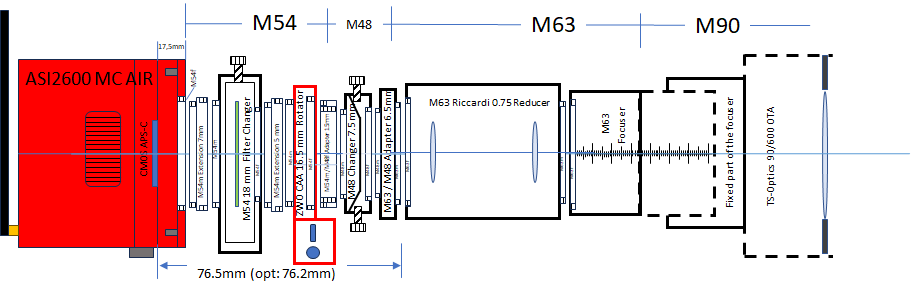

Configuration Schematic
Picture: TS600AS2600CAAx075-Drawing - click to enlarge

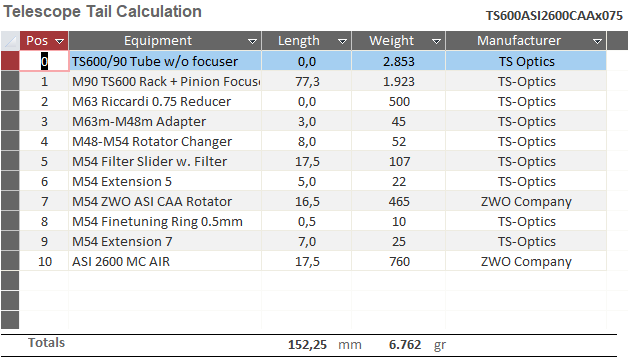

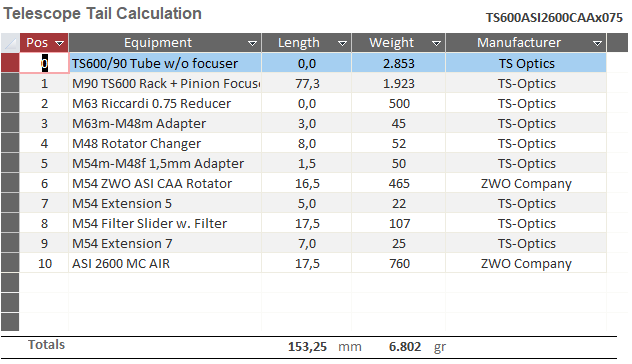

Table: TS600ASI2600CAAx067-CamTail
Focus points:
- OLeN filter: ~ EAF step position 21250, focuser position= 61,82mm
- No Filter: ~ EAF step= 29000, focuser position=60,82mm
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 231 EAF steps to the backfocus.
