CID132: TS1624cASI2600CAA [TS1624cASI2600rtT239ZWOCAA] |
updated: 2026-01-23 |
all measures in mm
WARNING for the 2.5“ Rack & Pinion Focuser: If the tube extenders are less than 75 mm long, the focuser will not return all the way to 0 mm and will start at a different zero distance.
Use this as the EOF position (0000).
Main Features:
- Telescope: TSO 203/1624c RC Pro Carbon
- 65 mm tube extension (1x 50mm extension + 15mm tilting adapter)
- Rack & Pinion Focuser
- Camera: ZWO ASI2600 MC AIR
- Others components:
- ZWO CAA Rotator,
- M48 rotation adapter (for a easy camera detachment),
- M54 TS-Optics Filter Changer for 2" or 1.25" filters
Configuration Schematic

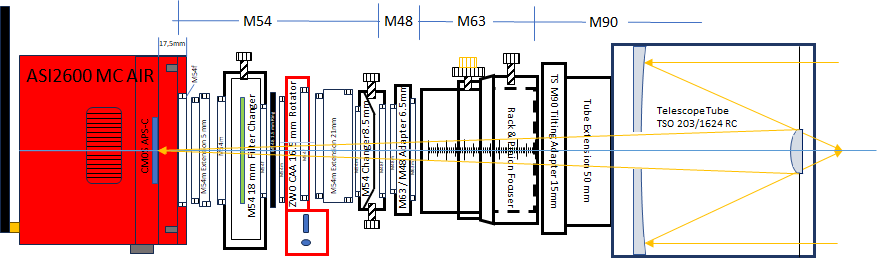

Picture: CID132-TS1624cASI2600CAA-drawing - click to enlarge
Table: CID132-TS1624cASI2600CAA-CamTail
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 190 EAF steps to the backfocus.
