Addendum:
|
Configuration ID: |
CID125 |
updated: 2026-03-31 |
|
Label: |
TS600ASI2600CAAN |
||
|
Identifier: |
TS600ASI2600CAANT273 |
||
|
TSO600/90 APO configuration with CAA Rotator and ASI 2600MC AIR + non rotating filter |
|||
all measures in mm
Main Features:
- BASIC configuration for TSO90/600 APO with ZWO ASI2600 MC AIR camera
- Telescope: TSO 90/600 APO
- Camera: ZWO ASI2600 MC AIR
- Others components:
- ZWO CAA Rotator,
- M54/M48 rotation and change adapter (for a easy camera detachment),
- M54 TS-Optics Filter Changer for 2" or 1.25" filters
- Disadvantage: The filter does not rotate with the camera and must therefore be thoroughly cleaned before shooting flat calibration and light frames.
- Advantages:
- As the filter holder no longer rotates and the filter slot points 45° upward, the filter cannot accidentally fall off.
- The filter slider is more easily accessible even during operation.

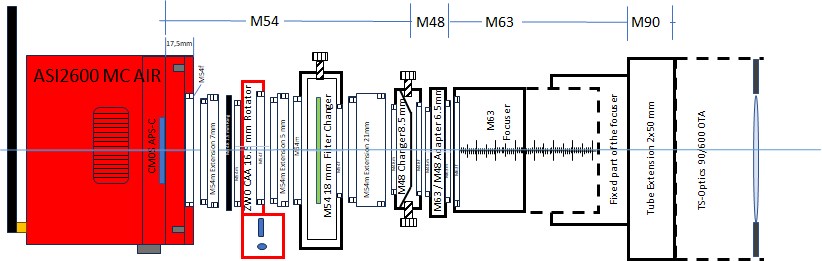

Configuration Schematic
Picture: TS600AS2600CAAN-Drawing - click to enlarge

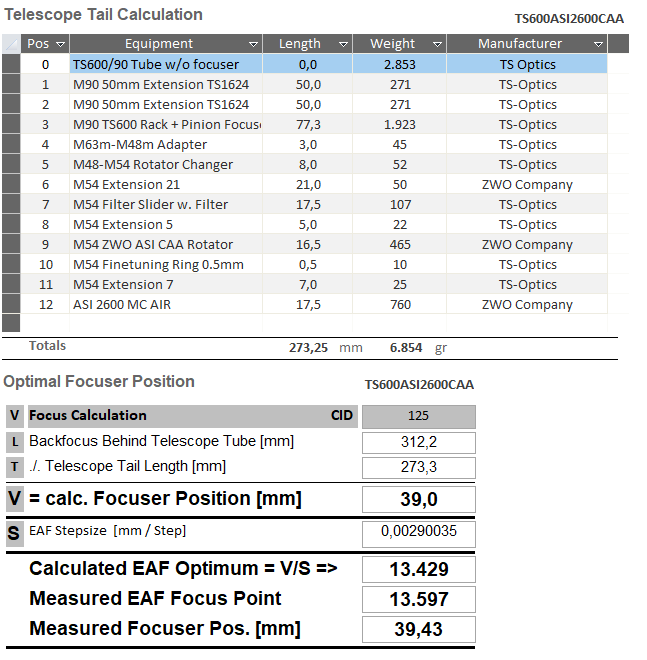

Camera Tail Calculation
Table: TS600ASI2600CAAN-CamTail
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 231 EAF steps to the backfocus.
