Addendum:
|
Configuration ID: |
CID140 |
updated: 2026-03-31 |
|
Label: |
TS600ASI2600CAAR |
||
|
Identifier: |
TS600ASI2600CAART255 |
||
|
TSO600/90 APO configuration with CAA Rotator and ASI 2600MC AIR + rotating filter |
|||
all measures in mm
Main Features:
- BASIC configuration for TSO90/600 APO with ZWO ASI2600 MC AIR camera
- Telescope: TSO 90/600 APO
- Camera: ZWO ASI2600 MC AIR
- Others components:
- ZWO CAA Rotator,
- M54/M48 rotation and change adapter (for a easy camera detachment),
- M54 TS-Optics Filter Changer for 2" or 1.25" filters
- Advantages: The filter rotates with the camera. Therefore, any contamination of the filter can also be compensated for using flat calibration frames.
- Disadvantages:
- The camera tail is no longer universally compatible with other applications and requires more extensive modification for that purpose.
Configuration Schematic

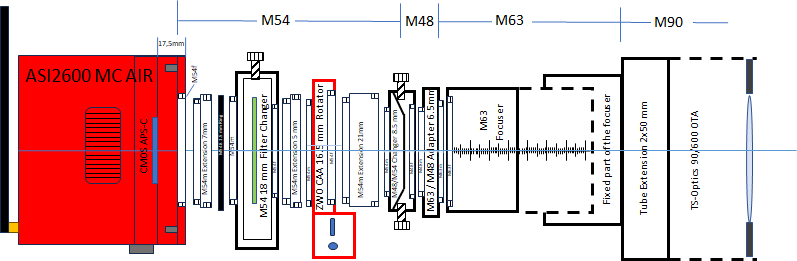

Picture: TS600ASI2600CAAR-Drawing - click to enlarge
Camera Tail Calculation

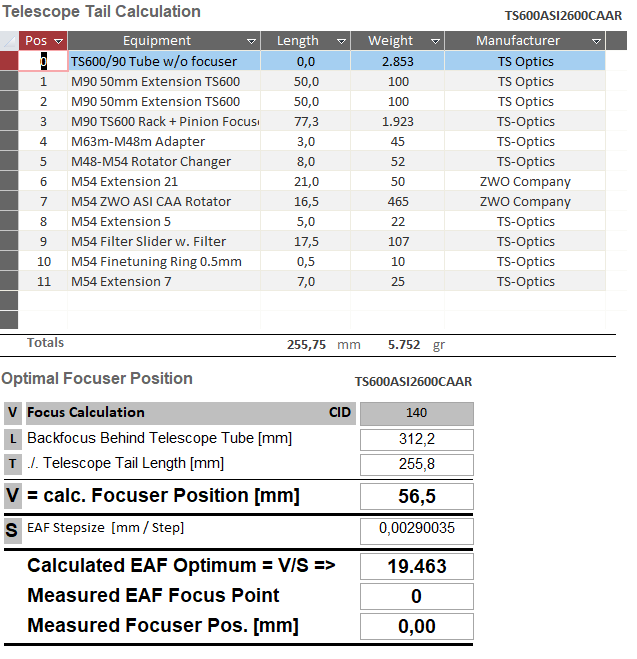

Table: TS600ASI2600CAAR-CamTail
Important: When using filters, add 1/3 of the filter thickness in mm to the standard backfocus length!
e.g: Optolong I-eXtreme filter with 2mm thickness adds 0.67mm or 231 EAF steps to the backfocus.
Configuration Details
