PixInsight - Improving the Non-Linear Image |
Sharpening Details with Multiscale Linear Transform |
updated: 2026-02-19 |
|
Purpose |
In this step PixInsight is used to sharpen details in the nearly final image |
|
Activation |
Menu: Process 🡺 Multiscale Processing 🡺 MultiscaleLinearTransform and: Script 🡺 Image Analysis 🡺 Extract Wavelet Layers |
|
Input |
a nearly final non-linear image, preferably of the the DSO object without stars after the MAS (Multiscale Transform Stretch) |
|
Output |
a sharpened image |
|
Tutorial |
From Blurry to Brilliant: Master Image Sharpening with PixInsight Multiscale Linear Transformation |
Steps:
- Open the nearly final non-linear image, preferably of the the DSO object without stars after the MAS (Multiscale Transform Stretch), e.g.:

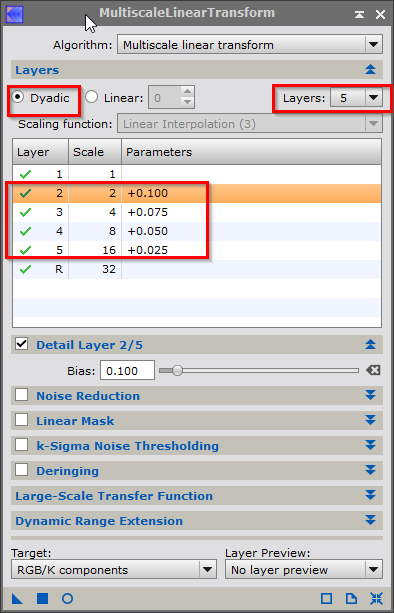

- Open Process 🡺 Multiscale Processing 🡺 MultiscaleLinearTransform and set these parameters:

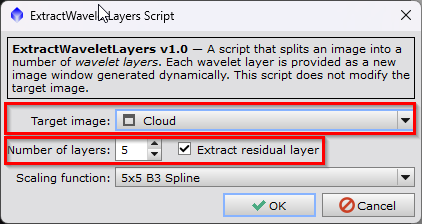

- Open Script 🡺 Image Analysis 🡺 Extract Wavelet Layers and set the following parameters:
- Click on OK and hide the wavelet windows that are being created by this script.
- Go back to the MultiscaleLinearTransform and open the preview window to show the effect of the transformation.
- Apply the process to the image.
- ... and check the result:
|
Before |
After |
|
|
|
Hint: A simpler method is to increase the sharpness and detail levels in Lightroom Classic (LRC). However, since LRC cannot import XISF files, this method only works with TIFF or JPG files.
